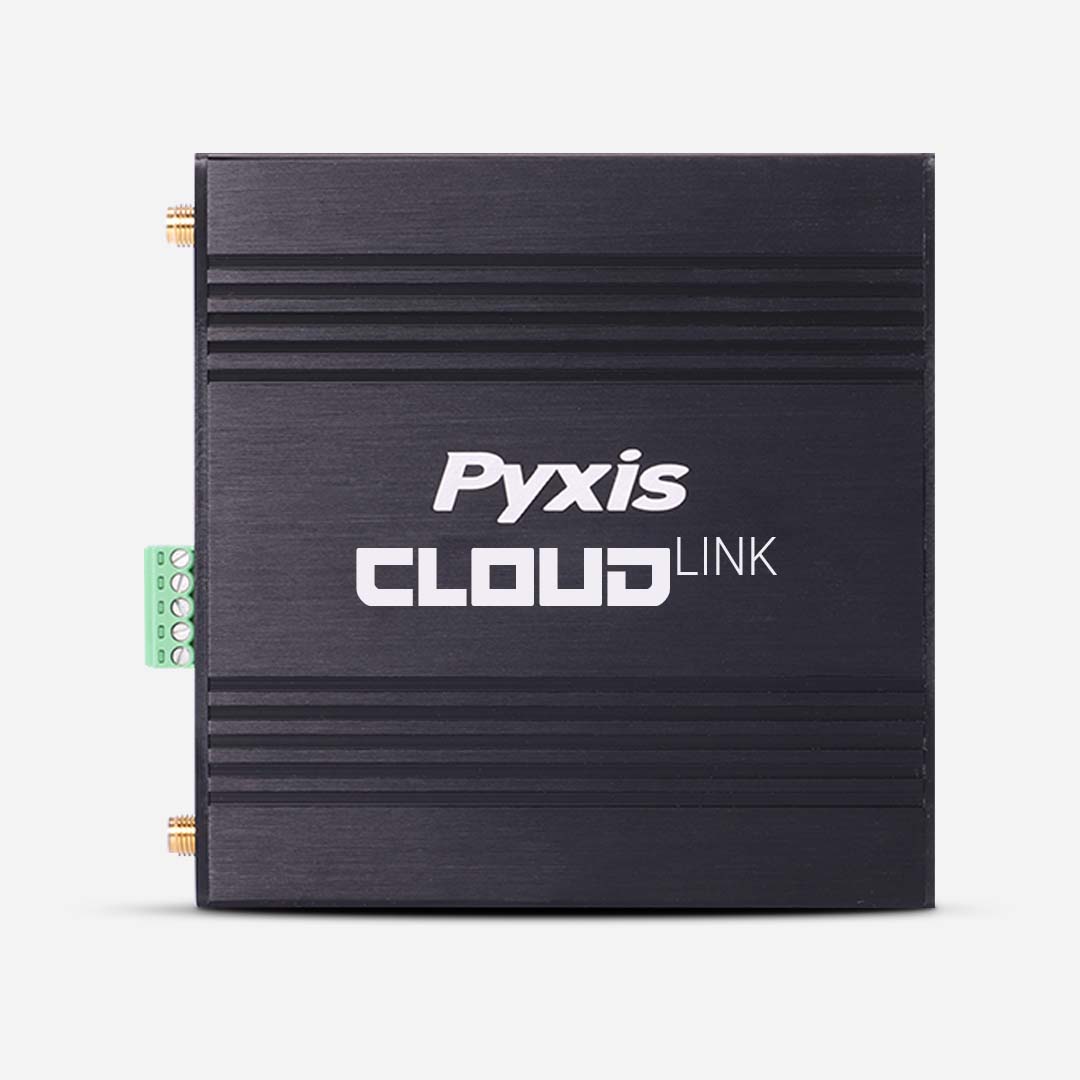

TC-220 CloudLink™ 4G LTE Gateway

High Performance 4G LTE Gateway Hardware Platform meant to connect users to the Pyxis Cloud™ Data Management Platform.

$892.00

SKU 43030 Categories Accessories, Communication Tags 4G LTE, Data Management Platform, Gateway

High Performance Hardware Platform features ARM Cortex-A8 CPU up to 1G Hz and up to 512MB Memory
Bluetooth® 5.0 Technology
Built to have Data tie into Pyxis Cloud™ Data Management Platform
Data ties into any Cloud-Based Data Software
LTE Cat 4 Module Optimized for M2M and IoT Applications, Major Carriers Supported (AT&T, Verizon and T-Mobile)
WiFi Connectivity, Support IEEE 802.11 b/g/n Radio, Bit Rates up to 72.2Mbps (On-Debugging)
Intuitive Web Interface for System Commissioning & Configuration
Rugged Design to Work in Industrial Environments

Specifications

Item	CloudLink™
Part Number	43030
CPU	ARM Cortex A-8 32-bit Processor
Memory	up to 512MB
Storage	4GB, up to 68GB Support

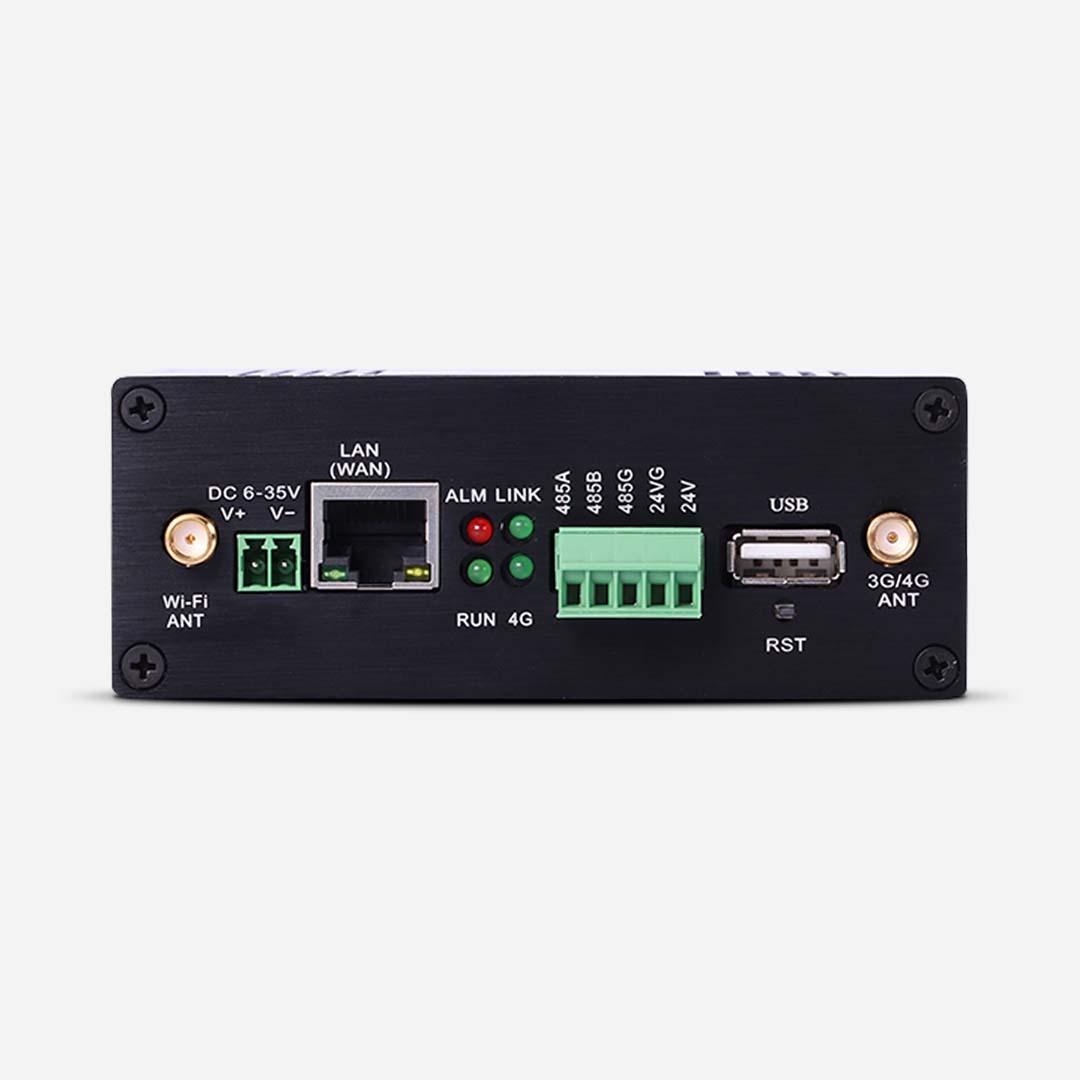

Ethernet Port	(1) RJ-45 (10/100 Base-T)
Serial Port	(1) RS-485 with 24V Output
Slim Slot	x1
Micro SD Slot	x1
Micro USB	x1 (For Configuration)
DC Power Input	9-36VDC
Power Consumption	3.6W
Antenna Connector	1×50Ω SMA (Center Pin: Female)
On Board RTC	YES
LTE Category	4G
Bands Supported	B1/2/3/4/5/6/7/12/13/14/20/28/66/71
Carriers Supported	AT&T, Verizon, T-Mobile
Protocols Supported	IP/TCP/UDP/HTTP/HTTPS/Modbus
WiFi Connectivity	IEEE 802.11 b/g/n radio
Dimension	L 102mm, W 106mm, H 40mm
Weight	300g
Storage Temperature Range	-12-158 °F (-25-70 °C)
Operation Temperature Range	-4-140 °F (-20-60 °C)
Humidity	5-95% (No Condensation)
Environmental	IP30
